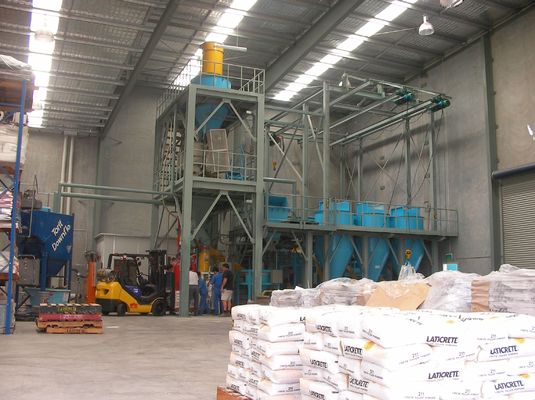

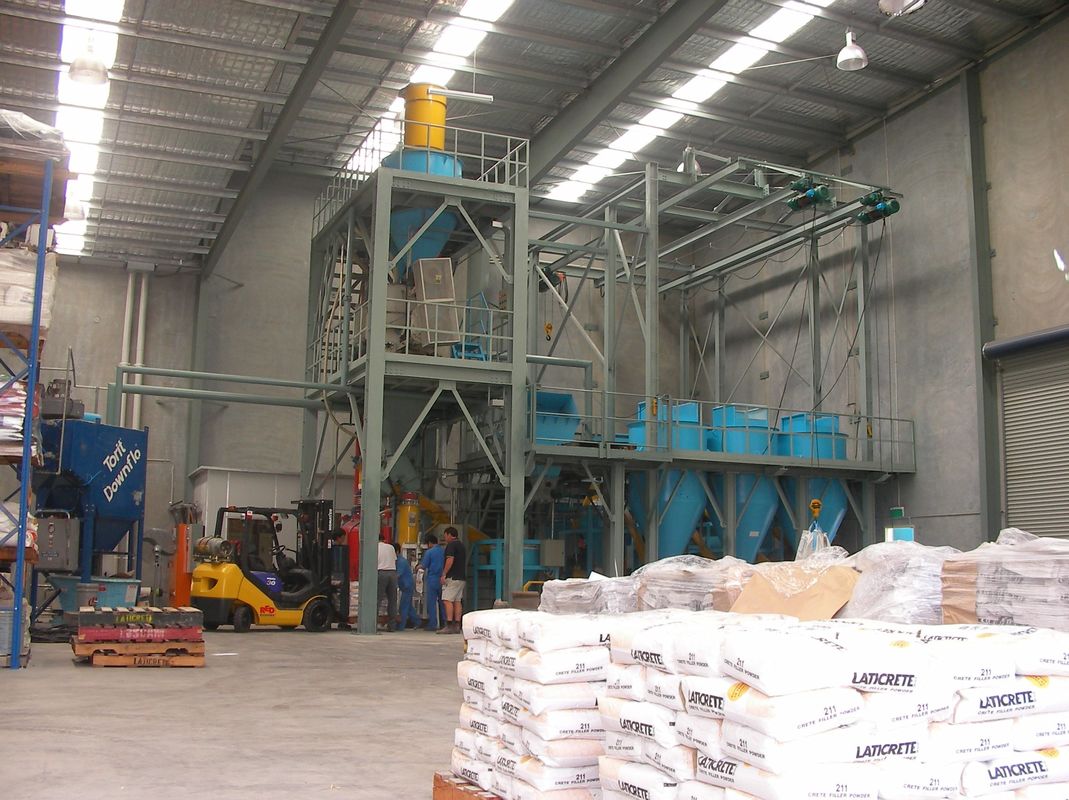

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line
Grundlegende Informationen
Herkunftsort: Shanghai, China
Markenname: Daesum
Min Bestellmenge: 1
Bestpreis Kontakt
Video-Ausgangskontrolle: Bereitgestellt Maschinenprüfbericht: Bereitgestellt
Kernkomponenten: SPS, Silo, Mischer, Schneckenförderer Anwendung: Konstruktion
Stromspannung: 380 V Leistung (W): 400
Gewicht: 200000 KG Garantie: 1 Jahr
Wichtige Verkaufsargumente: Automatisch, einfach zu bedienen, lange Lebensdauer, präzise Maschinenname: Mischanlage
Produkt: Trockenpulver/Mörtel/Gips Wiegen von sacle: 8 Sätze
Material: Stahl/Eisen Mischer: 2 Set
Produktionskapazität: 60000 t/Jahr Marketingtyp: Gewöhnliches Produkt
Kundendienst bereitgestellt: Ja Automatisierung: Dosieren und Wiegen
Funktion: Mischen von Trockenmörtel
Hervorheben:

Automatic dry mortar mix plant 380V

,

Dry mortar mixing line 60000 ton/year

,

Construction mortar plant 400W capacity

Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 0Dry powder/mortar Mixing plant

Introdction

  The mortar mixing plant is mainly composed of mixing host, material weighing system, material conveying system, material storage system and control system and other auxiliary facilities.

  The mixing plant has the advantages of environmental protection, energy saving, high efficiency, stability and safety.



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 2



 Product parameters



Production line type DX-PT20-2 Dry sand storage silo(s)  40m³*4
Product type Speacial powder product

Powder storage silo(s)

  40m³*4
Yearly output(one shift)  60,000 MT  Small material silo(s)  30m³*8
     Additive silo(s)  0.5m³*12
Yearly output(one mixer)  30-40 Thousand MT Finished product hooper(s)  5m³*2
Powder product output  2*12t/h Valve bag packing line(s)  3-mouth impeller packer*2
Mixer*2  WAM 2m³ Plough type  dust exhauster(s)

28 sets
Weighing system  8 sets Blow tank(s) 6 sets
WAM manual butterfly valves  24 sets  WAM pneumatic butterfly valve(s)  18 sets
 WAM screw feeders 23 sets  Small and micro material dosing screw feeder(s)  12 sets

Peripheral Equipment



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 4Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 6Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 8Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 10



Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 12Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 14Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 16Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 18Automatic Dry Mortar Mix Plant with 60000 Ton/Year Capacity 380V 400W Construction Mixing Line 20
